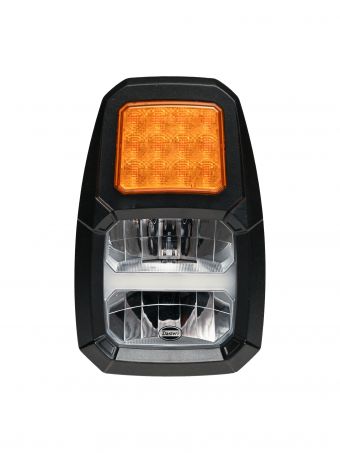

FRONT LED LOW AND HIGH BEAM LAMP

• Reference No: DSL-HLB20

Functions : High Beam / Low Beam / Front Position / Front D.I / Side D.I
Technical Specifications:
Op. Volt : 10V - 30V DC
Consumption : High Beam - 17,3W / Low Beam - 16,1W / Front Position - 3,5W / D.I - 5,1W
Consumption (with heated lens) : High Beam - 49,7W / Low Beam - 48,6W / Front Position - 4,2W / D.I - 7W
Type Of Protection : IP67

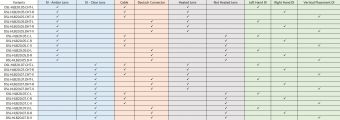

Available with (ask for corresponding code):

• Clear or Amber Lens (For Direction Indicator)
• Cable or Deutsch Connector
• Heated or Non-Heated Lens

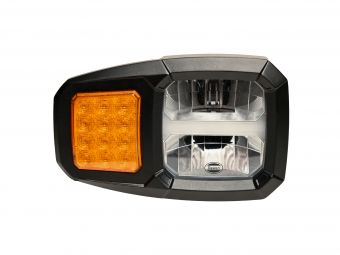

• Horizontal (L-R) or Vertical Placement of D.I.

Right-Left Bezel Change

Horizontal-Vertical Bezel Change
